Tempered glass/float glass/Chinese glass vegetable and flower greenhouse

1.Garden Flower Vegetable Fruit Planting Farm Glass Greenhouse:The glass greenhouse solve the contradiction between greenhouse heat preservation and light transmission.Good insulation in winter, Unique glass sealing structure,completely solve the problem of roof leakage. Glass greenhouse has the characteristic of beautiful appea

Featured Products

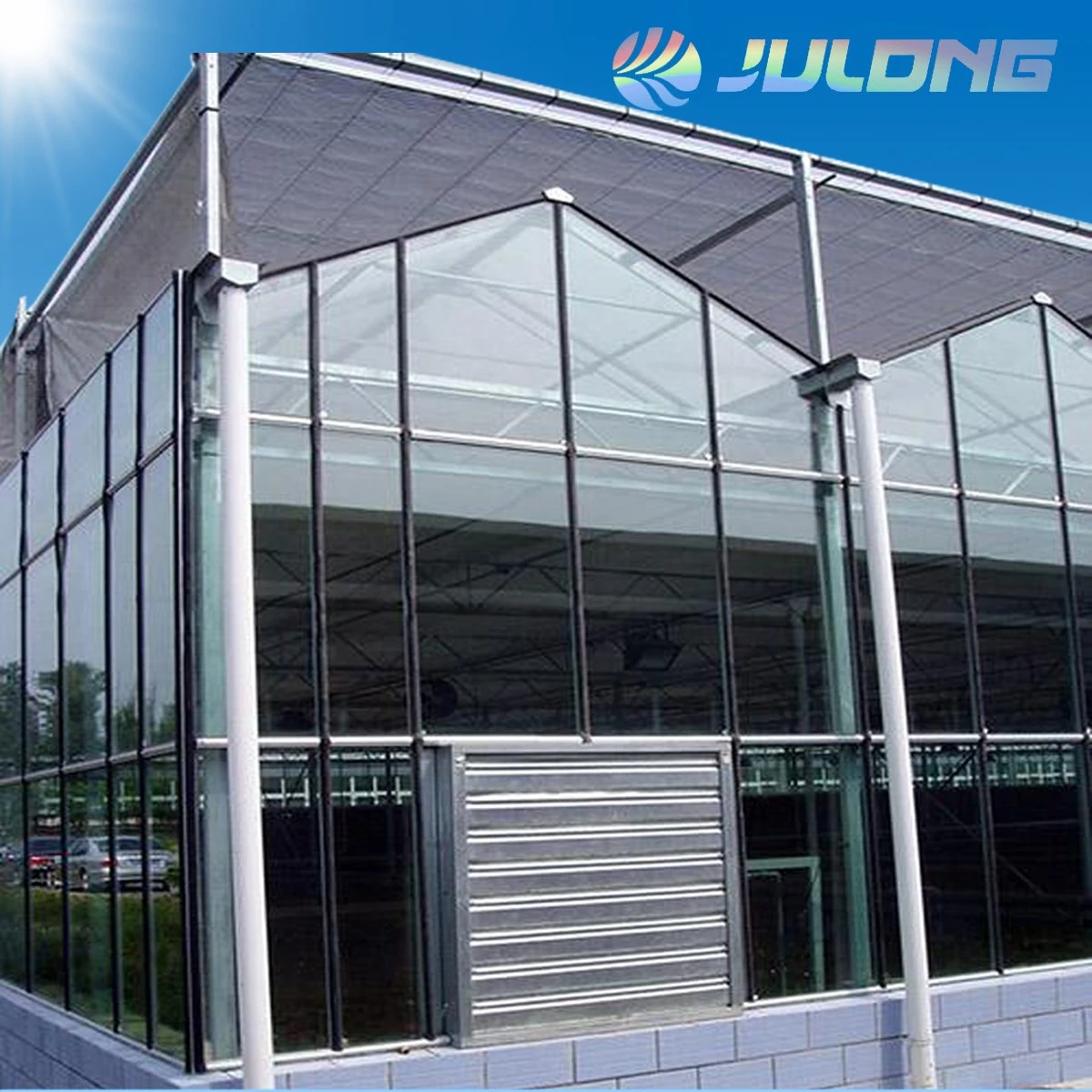

1.Garden Flower Vegetable Fruit Planting Farm Glass Greenhouse:

The glass greenhouse solve the contradiction between greenhouse heat preservation and light transmission.Good insulation in winter, Unique glass sealing structure,completely solve the problem of roof leakage. Glass greenhouse has the characteristic of beautiful appearance good light transmission , good display effect ,long service life and so on. For place with low light, and geothermal energyand and power plant waste heat, glass greenhouse is a better choice. Glass greenhouse is very suitable for the middle and lower reaches of the yangtze river basin.The glass greenhouse can realize the full automatic control. Heating system(heating fan or hot water heating), shading screen system,fog or water curtain cooling system, CO2 supplement system,lighting system, spray and drip irrigation and fertilization system, Computer integrated control system, roof sprinkler system and so on can be provided.

Tempering Glass/Float Glass / China Glass Greenhouse for Vegetable Flowers



Tempering Glass/Float Glass / China Glass Greenhouse for Vegetable Flowers

2.Greenhouse Parameters:

Greenhouse Type                          Venlo
Cover Material            Glass/Polycarbonate
Glass Thinckness                        4-5mm
Eaves Height                        3-9.0m
Structure Material     Hot-dip Galvanized steel pipe
Span     9.6m/8.0m/9.0m/9.6m/10.8m/12m
Light Transmisttance Rate                         >90%
Glass Type     Hollow glass  single layer glass
Colmun Space                     4.0m    8.0m
Specification                    Customization
Origin                        China
Transport packing       Standard packages contaciner
Trademark              JuLong greenhouse
Covering Material Service Time                      >15 Years
Film Color                  Transparency

3.Greenhouse System:

Tempering Glass/Float Glass / China Glass Greenhouse for Vegetable Flowers

a)Internal shading:
Setting internal shading is an effective way to save energy, shade, temperature and humidity.The unique advantage of the  shading curtain is that it will reflect the sun rather than absorb sunlight, effectively reduce the greenhouse light, while reducing the temperature of crops and air.Unique thermal radiation barrier materials outside greenhouse emission, can keep the curtain under the heat is not lost.Close the sunshade curtain will increase the humidity indoor temperature rapidly.At the same time, sunshade of lower surface heat radiation transmitted from the greenhouse has good absorption ability, the curtain can maintain high temperature.High temperature curtain can prevent condensation, to avoid the condensed water surface under the curtain.
b)Outside shading:In summer, the solar radiation heat load is too high,when the external shading system is used, the indoor temperature can be controlled to be only 1ºChigher than that of the outdoor room in a well ventilated greenhouse due to the blocking of most of the solar radiation into the greenhouse.If combined with wet curtain fan system, can create an ideal temperature and humidity environment, reduce greenhouse operation costs, saving energy consumption.
c)Exhust fan: Reasonable design, low noise, big air volume, strong wind, low operation cost;Air downstream synthetic type PVC blinds or aluminum shutters with oxidation resistance, light weight, deformation, flexible open, and it also can prevent air driven back ;High strength reinforced aluminum magnesium alloy belt pulley with light weight, high strength, good toughness, it has 6 pieces of stainless steel blade, it has no deformation, or fracture, it is also very attractive and durable;Configure high efficiency and energy saving motor through 3 c certification, protection grade: IP55, insulation class.
d)Cooling pad:Corrugated paper uses space cross-linking technology, which make it with high water absorption, high water resistant, mildew resistance, corrosion resistance, long service life.
e)water treatment:Rare flowers and plants have very high request for its irrigation water. Bad quality can affect the growth of flowers and color beauty , and it also affect the flexibility of leaves and flowers which may  become fragile. For special irrigation water requirements for these rare flowers and plants, we have introduced international advanced water treatment technology, which can fully meet the requirements of irrigation water quality meeting to the standards of drinking water. We also can tailor the most appropriate water treatment system according to the customer's requirements.
f)Sprinkler irrigation system:It use high-pressure pump for irrigation by spray system, which sprays water on the crops, is a method of irrigation water for the normal growth. It is a modern agricultural production technology collecting irrigation, fertilization and automation management. It can be divided into mobile pattern or sprinkler fixed irrigation system or half fixed spray irrigation system.

4.The Greenhouse Production Workshop:
Julong Agriculture is professional greenhouse equipment manufacturer with 10000 square meters of production base and advanced parduction line. Julong is committed to be China's best greenhouse engineering manufacturer.

Tempering Glass/Float Glass / China Glass Greenhouse for Vegetable Flowers

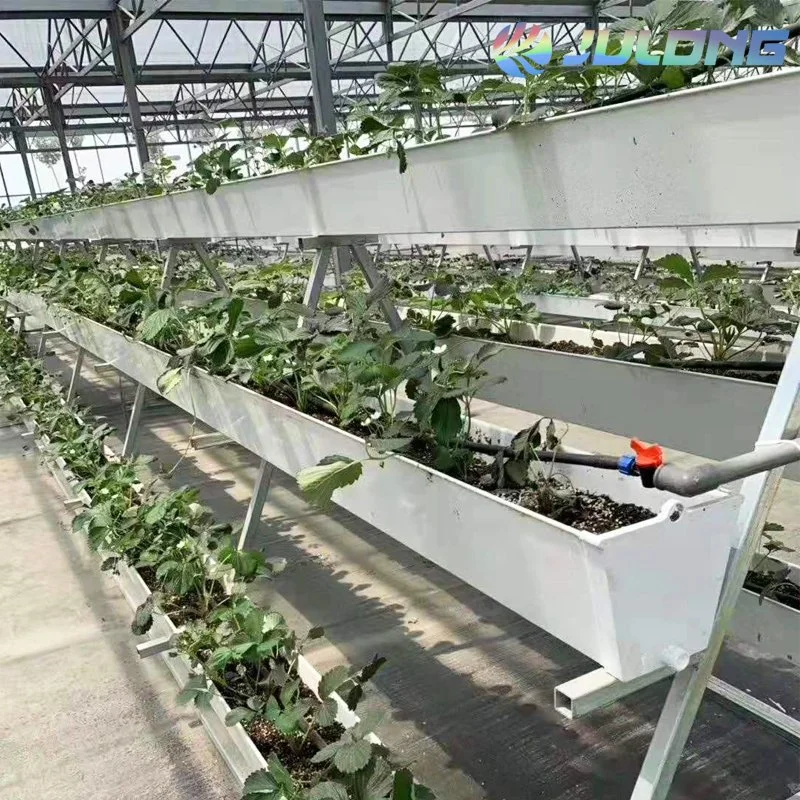

5.The Cases:

Tempering Glass/Float Glass / China Glass Greenhouse for Vegetable Flowers



6.Our service:
*We can supply free sample for you checking quality.
*Any problem about our products will be solved at the most prompt time.
*We always offer relative technical support/consultant and kindly after-sales servie.
7.FAQ:
Q: Are you trading company or manufacturer?
A: We are factory and we also have our trading company.
Q: How long is your delivery time?
A: Generally it is 20-30 days after order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How to install the greenhouse? Do you provide installation service?
A: We will provide paper or video building manual, or if needed we will send engineer
To do installation guidance...

Glad to provide you service and cooperate.

Contact: Bachir



Thank you!
